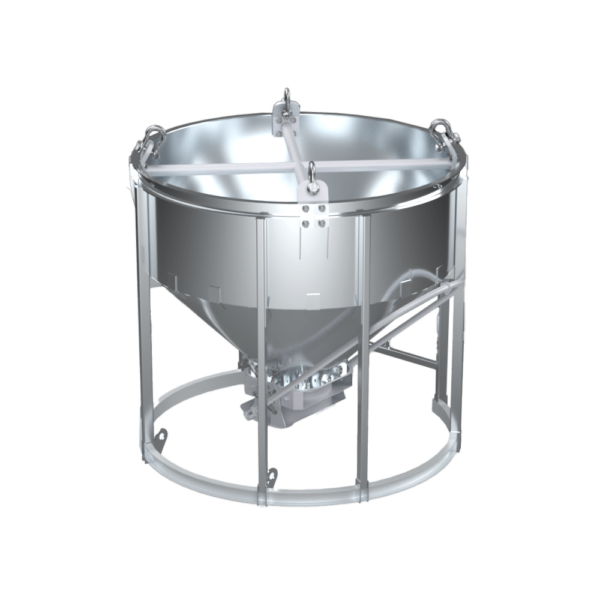

Concrete Bucket Aluminum 5 cu.yd.

CBA Series

Concrete Bucket | Concrete Aluminum Bucket System

P2K-CBA-500

5 CU YD

19600 lbs

Materials and Features

Made from high quality aluminum.
Designed to meet ASME standards.
Reinforced corners, base, and edge for extended service life
Corner reinforcements help maintain side parallelism and improve sealing performance
Size: 5 Cu Yd
Carrying Capacity: 19600 lbs
Smooth concrete placement.
Can easily replace the opening system, lifting bar and accessories separately from the bucket frame.
Trapdoor handle offers superior smoothness when the bucket is filled, surpassing our competitors’ offerings.
Chute attachment in aluminum or steel available separately.

Plate 2000 - Steel Concrete Bucket - P2K-CBA-500

Additional Information

Additional information

Size	5 CU YD
Diameter	89-7/8 Inches
Height	72,25 Inches
Weight capacity	19600 lbs
Empty weight	1080 lbs

General Description

Our aluminum buckets are designed and built to meet or exceed the rigorous North American standards, while also upholding ASME regulations.With our commitment to quality and adherence to industry regulations, you can trust our aluminum concrete buckets to deliver reliable performance and durability on your construction projects.When it comes to bucket attachments, a wide range of side chutes are available. There are 8 different models for each family (compatible within the family), resulting in 24 total models. The difference between the side chutes are short vs long, tapered vs non-tapered and aluminum vs steel.In terms of bucket accessories, compatibility is ensured within the same family of buckets. Buckets from the same family (small : 1/3, ½ and ¾,medium: 1, 1-¼, 1-½ and 2, large: 2-½, 3, 4 and 5) share the same opening system, side chute, hoppers and forklift attachments (forklift attachement available for small and medium families only). The only exception is the lifting bar, which can vary within a bucket family.

Compatible chutes

STEEL SIDE DISCHARGE CHUTE

P2K PART NUMBER	DESCRIPTION	MODEL	WEIGHT EACH (LBS)
CBS-SSS-500	SIDE \| 5-1/2’’ X 30’’ X 86-3/4’’	SHORT	176
CBS-SRS-500	SIDE \| 5-1/2’’ X 30’’ X 86-3/4’’	SHORT & TAPERED TO 6-15/16’’ X 23-1/8’’	177
CBS-SSL-500	SIDE \| 5-1/2’’ X 30’’ X 98’’	LONG	196
CBS-SRL-500	SIDE \| 5-1/2’’ X 30’’ X 98’’	LONG & TAPERED TO 6-15/16’’ X 23-1/8’’	197

ALUMINUM SIDE DISCHARGE CHUTE

P2K PART NUMBER	DESCRIPTION	MODEL	WEIGHT EACH (LBS)
CBA-SSS-500	SIDE \| 5-1/2’’ X 30’’ X 86-3/8’’	SHORT	83
CBA-SRS-500	SIDE \| 5-1/2’’ X 30’’ X 86-3/8’’	SHORT & TAPERED TO 7’’ X 22-7/8’’	83
CBA-SSL-500	SIDE \| 5-1/2’’ X 30’’ X 97-7/8’’	LONG	92
CBA-SRL-500	SIDE \| 5-1/2’’ X 30’’ X 97-7/8’’	LONG & TAPERED TO 7’’ X 22-7/8’’	92

1 (418) 209 0085 | [email protected]
www.plate2000.com

We reserve the right to make specification,
equipment and price changes without notice.
