Description

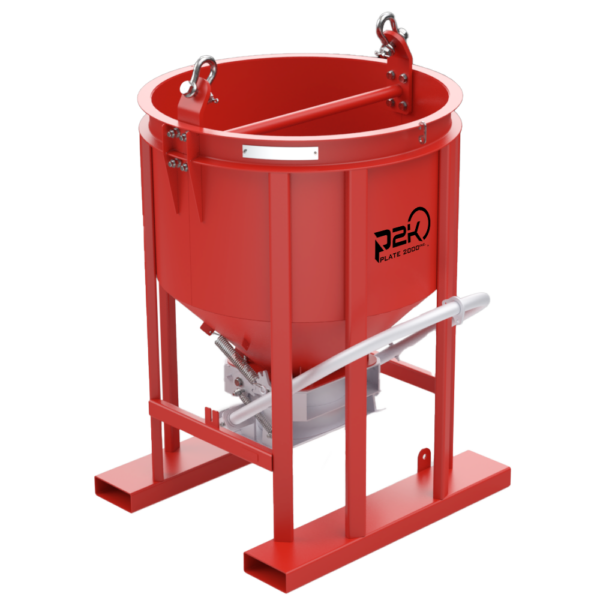

Our steel buckets are designed and built to meet or exceed the rigorous North American standards, while also upholding ASME regulations.With our commitment to quality and adherence to industry regulations, you can trust our steel concrete buckets to deliver reliable performance and durability on your construction projects.When it comes to bucket attachments, a wide range of side chutes are available. There are 8 different models for each family (compatible withinthe family), resulting in 24 total models. The difference between the side chutes are short vs long, tapered vs non-tapered and aluminum vs steel.
For bucket accessories, compatibility is ensured within the same family of buckets. Buckets from the same family
(small : 1/3, ½ and ¾,medium: 1, 1-¼, 1-½ and 2, large: 2-½, 3, 4 and 5) share the same opening system, side chute, hoppers and forklift attachments (forklift attachement available for small and medium families only).
The only exception is the lifting bar, which can vary within a bucket family.
- Compatible chutes:
STEEL SIDE DISCHARGE CHUTE
| P2K PART NUMBER | DESCRIPTION | MODEL | WEIGHT EACH (LBS) |
| CBS-SSS-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 40’’ | SHORT | 24 |
| CBS-SRS-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 40’’ | SHORT & TAPERED TO 4-15/16’’ X 8-3/16’’ | 24 |
| CBS-SSL-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 51-1/2’’ | LONG | 29 |
| CBS-SRL-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 51-1/2’’ | LONG & TAPERED TO 4-15/16’’ X 8-3/16’’ | 29 |
ALUMINUM SIDE DISCHARGE CHUTE
| P2K PART NUMBER | DESCRIPTION | MODEL | WEIGHT EACH (LBS) |
| CBA-SSS-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 40’’ | SHORT | 14 |
| CBA-SRS-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 40’’ | SHORT & TAPERED TO 5’’ X 8-1/16’’ | 14 |
| CBA-SSL-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 51-1/2’’ | LONG | 17 |
| CBA-SRL-075 | SIDE | 4-13/16’’ X 14-3/4’’ X 51-1/2’’ | LONG & TAPERED TO 5’’ X 8-1/16’’ | 17 |
