Screed Sled

Bump Cut Faster, Easier & Better Than Before

Experience the next evolution in concrete finishing. The Screed Sled makes bump cutting faster, easier, and more efficient—saving time and labor while delivering precise results.

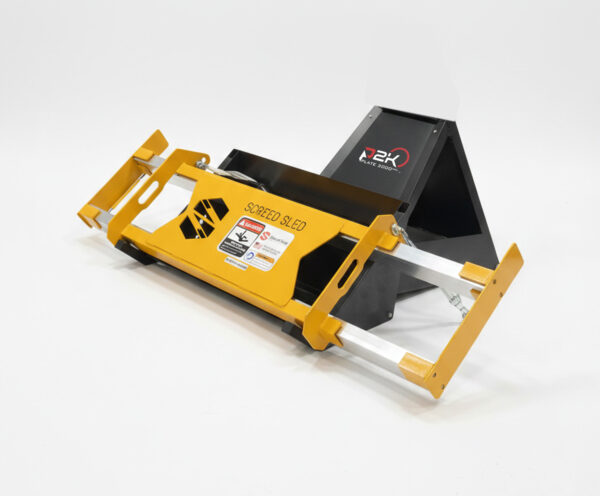

The Screed Sled is a concrete construction implement designed to be pulled behind a ride-on power trowel for the purpose of bump cutting concrete slabs. It consists of a main frame and end caps which allow for standard screed boards/beams to be utilized. It can be used with 6-, 8-, 10-, and 12-foot ride-on trowel machines.

Screed Sled – innovation with patent pending.

It is specifically designed for large, wide floor placements and is not intended for small, segmented pours or areas with numerous obstructions such as pipes, columns, or electrical cutouts.

SKU: Screed_Sled Categories: ,

Description

Why Choose Screed Sled?

Higher F-numbers. Immediate results.

Built for performance from the first pass, the product delivers faster results, better surface control, and a cleaner finish. Higher F-numbers mean more effective force where it matters, reducing rework and maximizing efficiency on every job.

Want to achieve the ultimate level of floor flatness?

By combining the Screed Sled, the Big Foot System, and the Super Flat pans by Plate 2000, you elevate floor flatness to its highest potential. A powerful synergy. A proven process.

Quality
Engineered with robust, high-grade materials to withstand the most demanding job sites.

Efficiency
Streamlined design that significantly reduces manual labour and speeds up the finishing process.

Precision
Deliver consistent, professional-grade results every time with tools designed for accuracy.

COMPATIBLE EQUIPMENT

  • Pulling machine: Must be used with pan-style ride-on power trowel only. Recommended: 8-10ft hydro machines.
  • Accommodates straightedges 8-12ft in length, 1-2in wide. Recommended straightedge: 2in x 4in x 10ft.


MATERIALS & FEATURES

  • Made from North American High-Grade steel.
  • Structure painted in Yellow.
  • Includes two steel turnbuckles for attachment.
  • Holes are designed and cut into the Screed Sled frame to add weight using cut to size rebar.
  • Aluminum or Magnesium Straight edges sold separately.
  • Can be combined with the Big Foot System by Plate 2000 to increase floor flatness.

Additional information

Overall Length

Screed board + 0.50in (Min 96.50in)

Overall Width

21 in

Weight

135 lb (Not including screed boards)
